Oil Fillers
Oil fillers with air breather caps serve two purposes which are important on hydraulic installations:
- They permit easy oil filling of the installation and they avoidthe introduction of large dirty particles or objects into the tank.
- They filter and clean the exchange of air between tank and outside ambiance when there are flow variations.
Product Codes of Oil Filler Series TR:

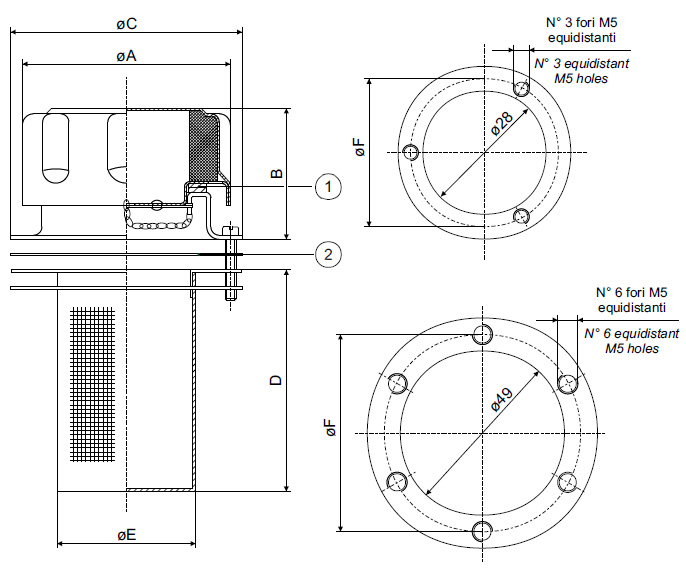

| Type | Dimensions (mm.) |  |
||||||||
| Type | Micron Filtering | Recommended Flow | øA | B | øC | D | øE | øF | Fixing Holes |
|
| TR-1 | 40 | 250 | 45 | 35 | 82 | 66 | 27 | 41 | 3 | |
| TR-2 | 40 | 700 | 75 | 45 | 83 | 95 | 48 | 73 | 6 | |
| TR-3 | 40 | 700 | 75 | 45 | 83 | 150 | 48 | 73 | 6 | |
