Inox Steel – Hydraulic Accumulators

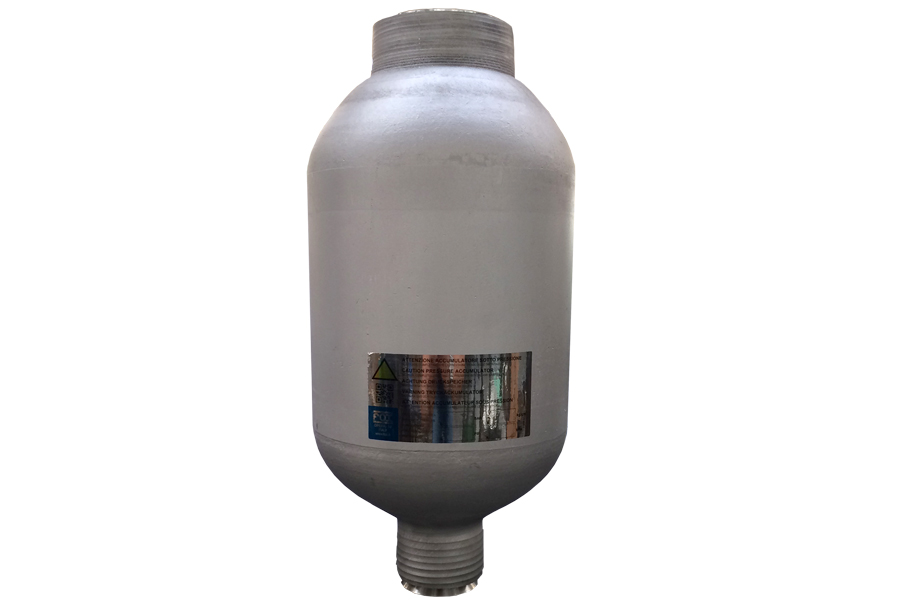

Inox Steel Accumulators – HTRX Series
Technical Data:
- Maximum working pressure (PS): 30 – 120 bar
- Test pressure (PT): PS x 1,43 / 1,3 / 1,5
- Body: in AISI 316L stainless steel
Bladder: NBR, HNBR, EPDM, FPM, HYTREL, Butyl, Polyurethane - Standard nitrogen valve : ⅝” UNF
- Installation: horizontal / vertical (nitrogen valve upward)
Options avaliable:
- Outside epoxy painted as per standard FOX procedure or as project specification
- Connection with flange SAE 3000 – SAE 6000, ANSI B16.5 or UNI/DIN
- Connection API spec. 6A type 6BX
- Autoclave or Grayloc connection
- Special connection on request
- Integral flange connection
- Maintenance Free (HTRX-SMF)
- Exotic material execution
- High pressure execution
Product Codes of HTRX Accumulators:
[table id=23_1_8]

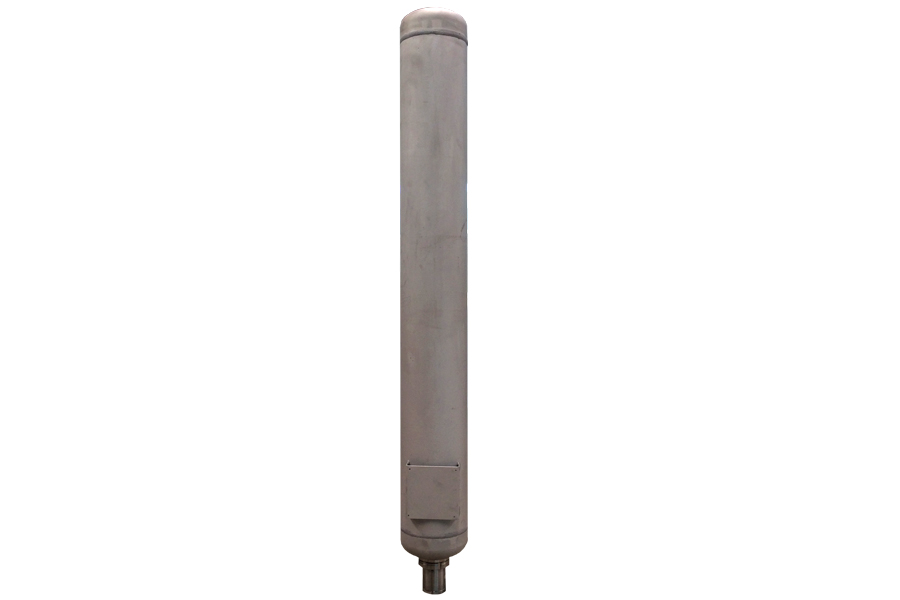

Inox Steel Accumulators – HBX Series
Technical Data:
- Maximum working pressure (PS): 50-450 bar
- Test pressure (PT): PS x 1,43 / 1,3 / 1,5
- Body: in AISI 316L stainless steel
- Bladder: NBR, HNBR, EPDM, FPM, HYTREL, Butyl, Polyurethane
- Standard nitrogen valve : ⅝” UNF
- Installation: horizontal / vertical (nitrogen valve upward)
Options avaliable:
- Outside epoxy painted as per standard FOX procedure or as project specification
- Connection with flange SAE 3000 – SAE 6000, ANSI B16.5 or UNI/DIN
- Connection API spec. 6A type 6BX
- Autoclave or Grayloc connection
- Special connection on request
- Integral flange connection
- Maintenance Free (HBX-SMF)
- Exotic material execution
Product Codes of HBX Accumulators:
[table id=23_1_9]

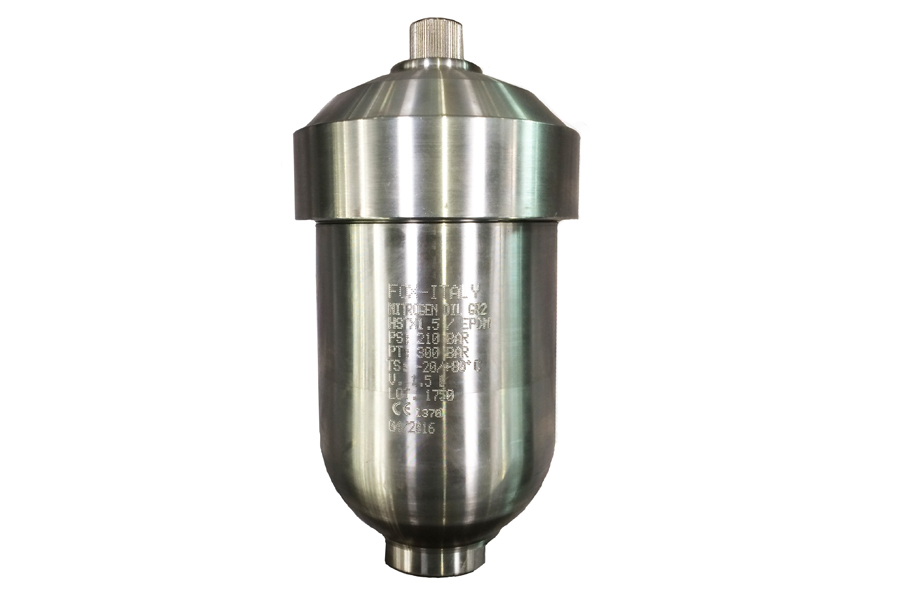

Inox Steel Accumulators – HSTX Series
Technical Data:
- Maximum working pressure (PS):150-210 bar
- Test pressure (PT): PSx1,43 / 1,3 / 1,5
- Body: in AISI 316 L stainless steel
- Diaphragm: NBR, HNBR, EPDM, FPM, HYTREL
- Standard nitrogen valve: ⅝” UNF Installation: horizontal / vertical (nitrogen valve upward)
Options avaliable:
- Outside epoxy painted as per standard FOX
procedure or as project specification - Connection with flange SAE 3000 – SAE
6000, ANSI B16.5 or UNI/DIN - Connection API spec. 6A type 6BX
- Autoclave or Grayloc connection
- Special connection on request
- Integral flange connection
- High pressure execution, 1379 bar (20’000
PSI) - Maintenance Free (HSTX-SMF)
- Exotic material execution
Product Codes of HSTX Accumulators:
[table id=23_1_10]

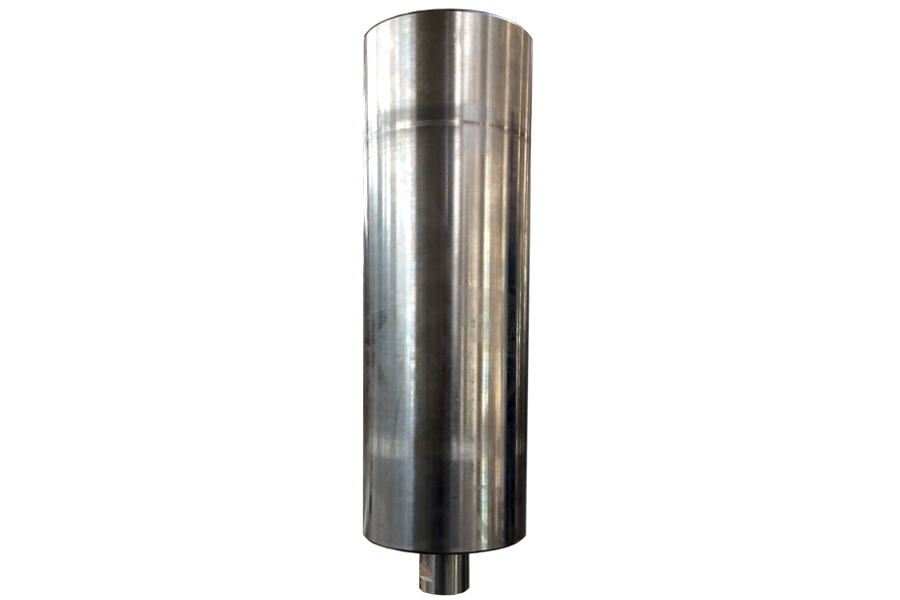

Inox Steel Accumulators – ACSX Series
Technical Data:
- Maximum working pressure (PS): 220 bar
- Test pressure (PT): PS x 1,43 / 1,3 / 1,5
- Body: in AISI 316L Stainless Steel
- Bladder: NBR, HNBR, EPDM, FPM, HYTREL, Butyl, Polyurethane
- Standard nitrogen valve : ⅝” UNF
- Installation: horizontal / vertical (nitrogen valve upward)
Options avaliable:
- Outside epoxy painted as per standard FOX procedure or as project specification
- Connection with flange SAE 3000 – SAE 6000, ANSI B16.5 or UNI/DIN
- Connection API spec. 6A type 6BX
- Autoclave or Grayloc connection
- Special connection on request
- Integral flange connection
- Maintenance Free (ACSX-SMF)
- Exotic material execution
Product Codes of ACSX Accumulators:
[table id=23_1_11]
