Bladder Type Accumulators

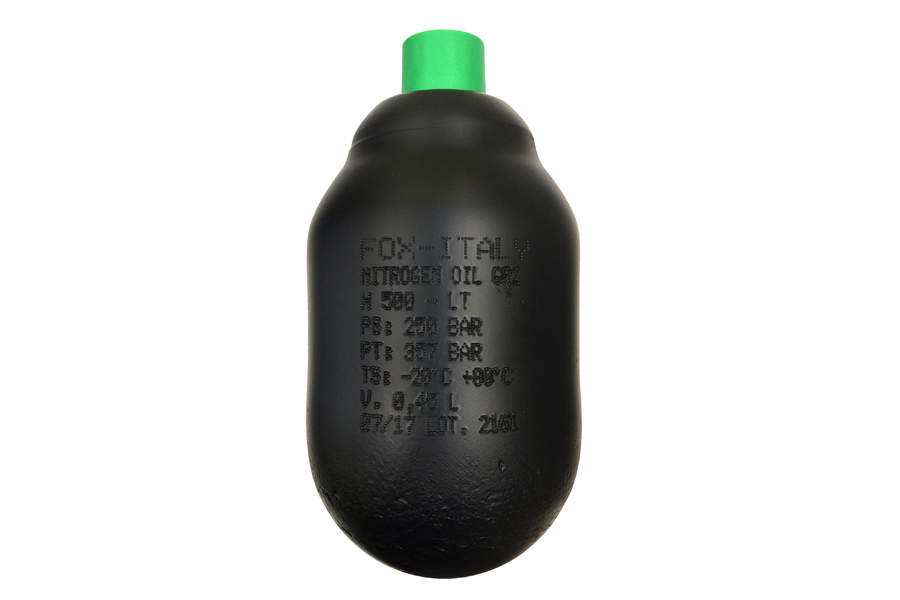

Bladder Type Accumulators – H Series
Technical Data:
- Maximum working pressure (PS): 250-210 bar
- Test Pressure (PT): PS x 1,43 / 1,3 / 1,5
- Body: made in painted carbon steel
- Standard nitrogen valve : ⅝” UNF (R version)
- Working temperature (TS): -20°C ÷ +80°C
- Standard bladder: can be used with mineral
Options avaliable:
- Outside epoxy painted as per standard FOX procedure or as project specification
- Bladders in HNBR, EPDM, FPM, HYTREL
- Connection with flange SAE 3000 – SAE 6000
- Connection with flange ANSI B16.5 or UNI/DIN
- Special connection on request
- H…/LT series for temperature up to – 40°C
- H…R series rechargeable with nitrogen valve 5/8” UNF
- H…M series rechargeable with nitrogen valve M28x1.5
- H…V series not rechargeable with fix nitrogen value
- Version 310 bar
- Maximum working pressure (PS): 250-210-150 bar
- Test Pressure (PT): PS x 1,43 / 1,3 / 1,5
- Body: made in painted carbon steel
- Standard nitrogen valve : ⅝” UNF
- Working temperature (TS): -20°C ÷ +80°C
- Standard bladder: can be used with mineral oils and non corrosive fluids
- Installation: horizontal / vertical (nitrogen valve upward)
- Inside and outside epoxy painted as per standard FOX procedure or as project specification
- Internal lining in different materials
- Bladders in HNBR, EPDM, FPM
- Connection with flange SAE 3000 – SAE 6000, ANSI B16.5 or UNI/DIN
- Special connection on request
- LT series for temperature of – 40°C
- S series for separator of fluid
- Execution 310 Bar
- Maximum working pressure (PS): 350 bar
- Test Pressure (PT): PS x 1,43 / 1,3 / 1,5
- Body: forged steel, sand and painted
- Standard nitrogen valve : ⅝” UNF
- Working temperature (TS): -20°C ÷ +80°C
- Standard bladder: can be used with mineral
- Inside and outside epoxy painted as per standard FOX procedure or as project specification
- Internal lining in different materials
- Bladders in HNBR, EPDM, FPM
- Connection with flange SAE 3000 – SAE 6000, ANSI B16.5 or UNI/DIN
- Special connection on request
- Execution with nitrogen/poppet valve in inox
- Accumulators technically and dimensionally interchangeable with other brands of same type
- Maximum working pressure (PS): 350-480-690 ba
- Test Pressure (PT): PS x 1,43 / 1,3 / 1,5
- Body: forged steel, sand and painted
- Standard nitrogen valve : ⅝” UNF
- Working temperature (TS): -20°C ÷ +80°C
- Standard bladder: can be used with mineral oils and non corrosive fluids
- Installation: horizontal / vertical (nitrogen valve upward)
- Inside and outside epoxy painted as per standard FOX procedure or as project specification
- Internal lining in different materials
- Bladders in HNBR, EPDM, FPM
- Connection with flange SAE 3000 – SAE 6000, ANSI B16.5 or UNI/DIN
- Special connection on request
- LT series for temperature of – 40°C
- S series for separator of fluid
- Execution 310 Bar
Product Codes of H Accumulators:
[table id=23_1_1]

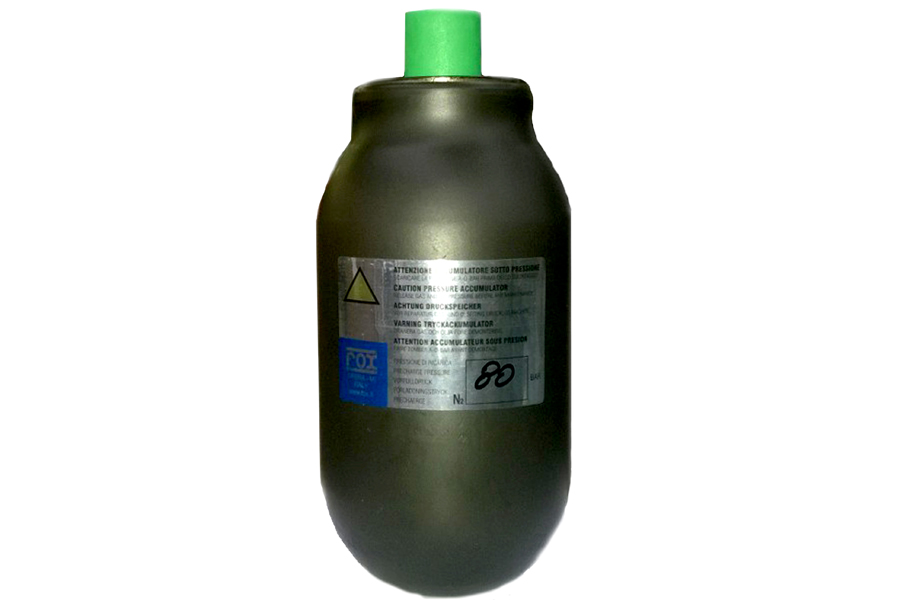

Bladder Type Accumulators – HTR Series
Technical Data:
Options avaliable:
Product Codes of HTR Accumulators:
[table id=23_1_2]

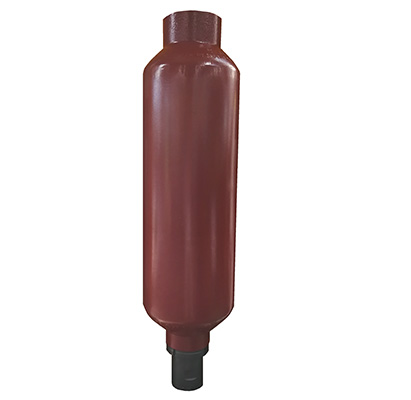

Bladder Type Accumulators – HBR Series
Technical Data:
Options avaliable:
Product Codes of HBR Accumulators:
[table id=23_1_3]

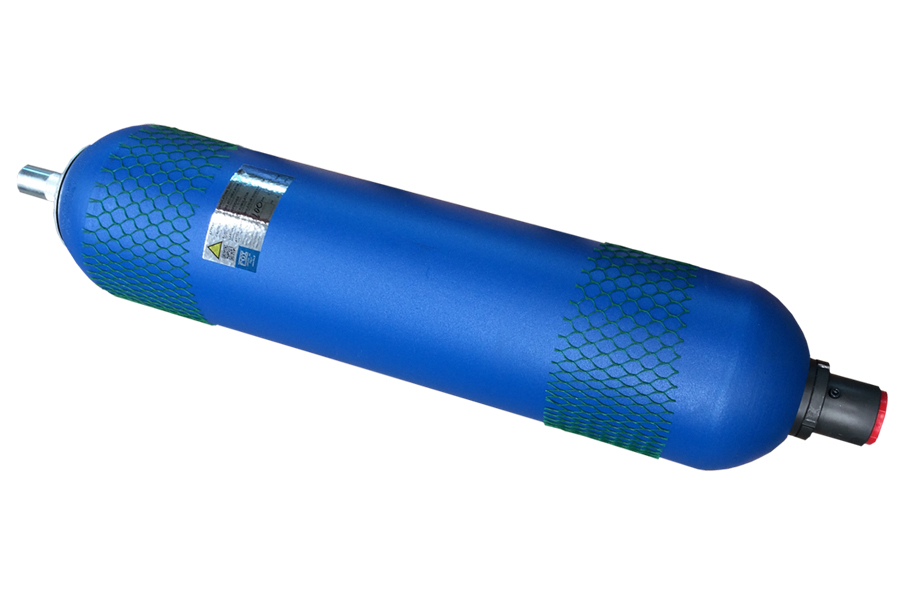

Bladder Type Accumulators – HB Series
Technical Data:
Options avaliable:
Product Codes of HB Accumulators:
[table id=23_1_4]
