Visual Level Gauges

Visual level gauges with or without thermometer, are made in steel and supplied with a Buna-N oil seal.

They are fitted to the exterior of oil and fuel tanks.

Send an Inquiry

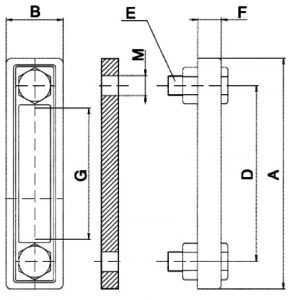

Product Codes of Level Gauges LG:

Type	Dimensions (mm.)
	A	B	F	G	D	E	M
	A	B	F	G	D	E	Ø min.	Ø max.
LG1	116	39	16	40	76	M10	10,5	11
LG1T	116	39	16	40	76	M10	10,5	11
LG1-M12	116	39	16	40	76	M12	10,5	11
LG1T-M12	116	39	16	40	76	M12	10,5	11
LG2	177	48	18	127	127	M12	12,5	13
LG2T	177	48	18	127	127	M12	12,5	13
LG2-M10	177	48	18	127	127	M10	12,5	13
LG2T-M10	177	48	18	127	127	M10	12,5	13

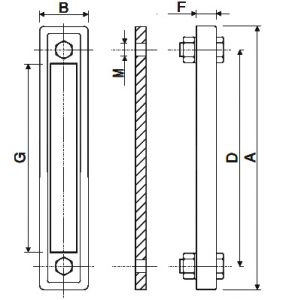

Product Codes of Level Gauges LGN:

Type	Dimensions (mm.)
	A	B	F	G	D	E	M
	A	B	F	G	D	E	Ø min.	Ø max.
LGN1	116	39	16	40	76	M10	10,5	11
LGN1T	116	39	16	40	76	M10	10,5	11
LGN1-M12	116	39	16	40	76	M12	10,5	11
LGN1T-M12	116	39	16	40	76	M12	10,5	11
LGN2	177	48	18	127	127	M12	12,5	13
LGN2T	177	48	18	127	127	M12	12,5	13
LGN2-M10	177	48	18	127	127	M10	12,5	13
LGN2T-M10	177	48	18	127	127	M10	12,5	13
LGN3	308	46	16	226	254	M12	12,5	13
LGN3T	308	46	16	226	254	M12	12,5	13
