Flow Control Valves – 3 Ways Priority
VPT – 3 Ways Flow Control Valves – Pressure Compensated, Exceeding Flow to Tank
| Symbol | Code | Max. Inlet Flow (L/min.) | Max. Adj. Flow (L/min.) | Max. Pressure (bar) | P - Ports | A-B Ports |
|---|---|---|---|---|---|---|
 | VPT380V | 50 | 30 | 250 | 3/8" BSPP | 3/8" BSPP |
| VPT120V | 90 | 50 | 250 | 1/2" BSPP | 1/2" BSPP | |
| VPT340V | 150 | 80 | 250 | 3/4" BSPP | 3/4" BSPP | |
| VPT100V | 240 | 150 | 250 | 1" BSPP | 1" BSPP |
VPT – AR – 3 Ways Flow Control Valves – Pressure Compensated, Exceeding Flow to Tank and Check Valve for free Reverse Flow
| Symbol | Code | Max. Inlet Flow (L/min.) | Max. Adj. Flow (L/min.) | Max. Pressure (bar) | P - Ports | A-B Ports |
|---|---|---|---|---|---|---|
 | VPT380VAR | 50 | 30 | 250 | 3/8" BSPP | 3/8" BSPP |
| VPT120VAR | 90 | 50 | 250 | 1/2" BSPP | 1/2" BSPP |
VPT-RV - 3 Ways Flow Control Valves – Pressure Compensated, Exceeding Flow to Tank and Relief Valve
| Symbol | Code | Max. Inlet Flow (L/min.) | Max. Adj. Flow (L/min.) | Max. Pressure (bar) | P - Ports | A-B Ports |
|---|---|---|---|---|---|---|
 | VPT380RV | 50 | 30 | 250 | 3/8" BSPP | 3/8" BSPP |
| VPT120RV | 90 | 50 | 250 | 1/2" BSPP | 1/2" BSPP | |
| VPT340RV | 150 | 80 | 250 | 3/4" BSPP | 3/4" BSPP |
VPP - 3 Ways Flow Control Valves – Pressure Compensated, Exceeding Flow to Pressure
| Symbol | Code | Max. Inlet Flow (L/min.) | Max. Adj. Flow (L/min.) | Max. Pressure (bar) | P - Ports | A-B Ports |
|---|---|---|---|---|---|---|
 | VPP380V | 50 | 30 | 250 | 3/8" BSPP | 3/8" BSPP |
| VPP120V | 90 | 50 | 250 | 1/2" BSPP | 1/2" BSPP | |
| VPP340V | 150 | 80 | 250 | 3/4" BSPP | 3/4" BSPP |

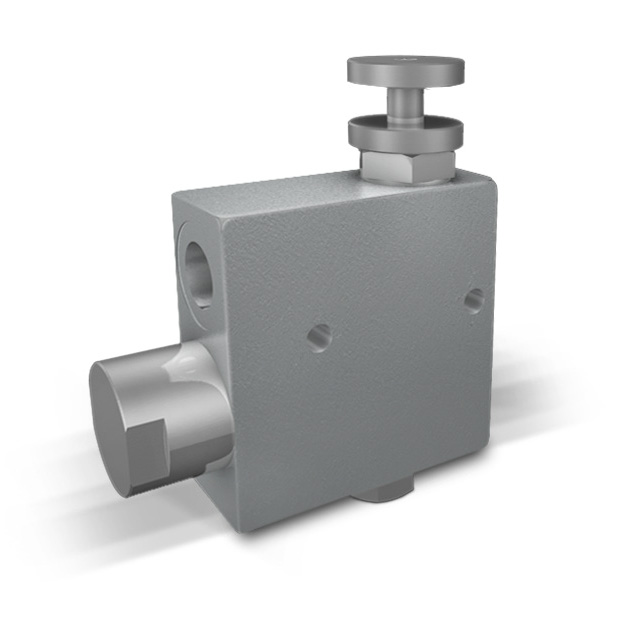

RFP3 – 3 Ways Flow Control Valve – Exceeding to Tank
| Symbol | Code | Max. Inlet Flow (L/min.) | Max. Adj. Flow (L/min.) | Max. Pressure (bar) | P - Ports | A-B Ports |
|---|---|---|---|---|---|---|
 | RFP3 3/8” / V1110 | 60 | 50 | 350 | 3/8" BSPP | 3/8" BSPP |
| RFP3 1/2” / V1120 | 80 | 60 | 350 | 1/2" BSPP | 1/2" BSPP | |
| RFP3 3/4” / V1130 | 120 | 100 | 350 | 3/4" BSPP | 3/4" BSPP |

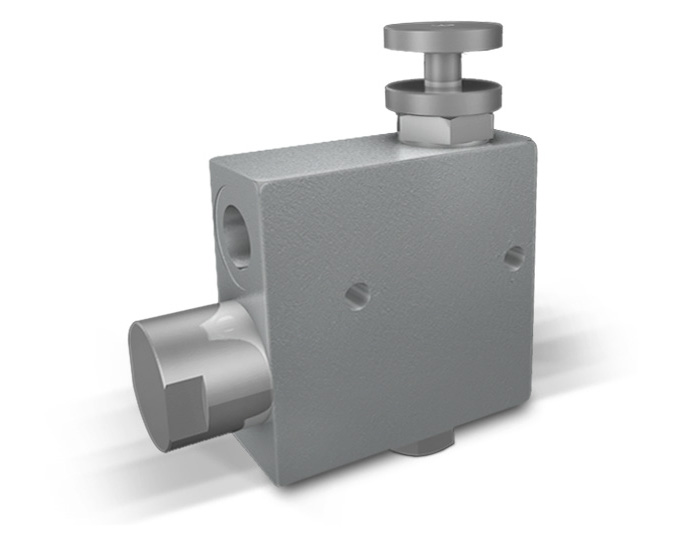

RFP3 VU – 3 Ways Flow Control Valve – Exceeding to Tank with Check Valve
| Symbol | Code | Max. Inlet Flow (L/min.) | Max. Adj. Flow (L/min.) | Max. Pressure (bar) | P - Ports | A-B Ports |
|---|---|---|---|---|---|---|
 | RFP3 3/8” / V1110 VU | 60 | 50 | 350 | 3/8" BSPP | 3/8" BSPP |
| RFP3 1/2” / V1120 VU | 80 | 60 | 350 | 1/2" BSPP | 1/2" BSPP | |
| PRFP3 3/4” / V1130 VU | 120 | 100 | 350 | 3/4" BSPP | 3/4" BSPP |

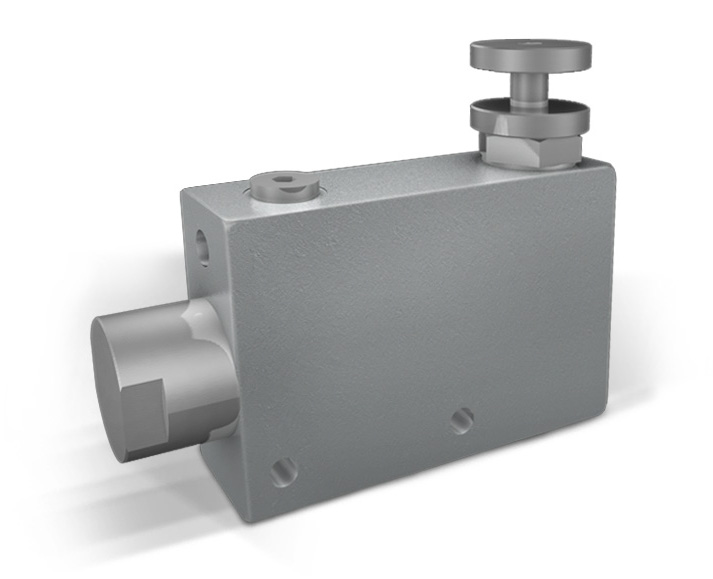

VPR3 - 3 Ways Flow Control Valves – Exceeding Flow to Pressure
| Symbol | Code | Max. Inlet Flow (L/min.) | Max. Adj. Flow (L/min.) | Max. Pressure (bar) | P - Ports | A-B Ports |
|---|---|---|---|---|---|---|
 | VPR3 3/8” / V1060 | 60 | 50 | 350 | 3/8" BSPP | 3/8" BSPP |
| VPR3 1/2” / V1070 | 80 | 60 | 350 | 1/2" BSPP | 1/2" BSPP | |
| VPR3 3/4” / V1080 | 120 | 100 | 350 | 3/4" BSPP | 3/4" BSPP | |
| VPR3 1” / V1090 | 200 | 170 | 350 | 1" BSPP | 1" BSPP |
3 way flow control hydraulic valves are used as actuators in heating, cooling, air conditioning systems, as well as in technological processes in which remote control of the flow of liquids is required.
Top Brands of 3 ways flow control valves
Metkoff Ltd. collected offers of 3 way flow valves from well-known world manufacturers. The main advantage of the products is comfort and complete safety during use. The three-way flow control valve has passed the required certification and is ready for delivery within 24 hours.
Order 3 ways flow control valves from Metkoff Ltd.
To order 3 way flow control valves, see our catalog. If you have not found the product you need, call us, write an email or fill out the form on the website. Metkoff specialists are ready to help you with your choice.
