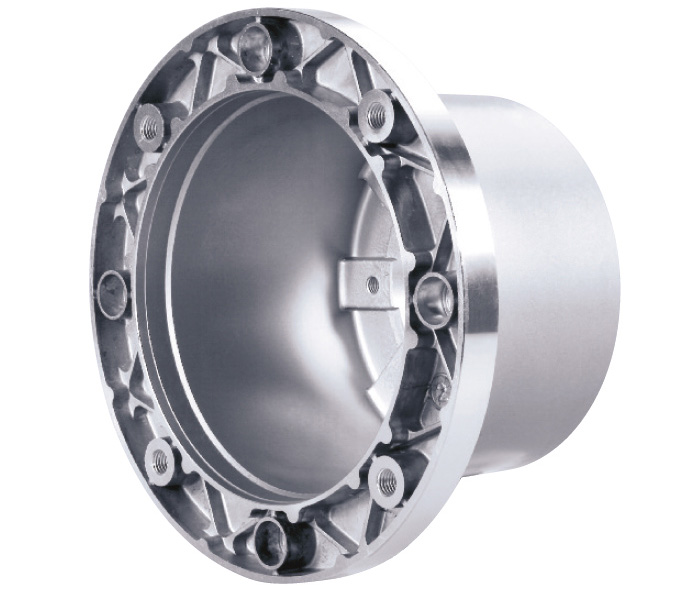

Bellhousings For Gear Pumps
Bellhousings are the mechanical elements used to connect an electric motor equipped with standard flange to a hydraulic pump, thus forming the pump/motor unit.
The bellhousings of this range allow to establish a perfect assembly between electrical motors with standard flange up to 270 kW and the majority of the hydraulic pumps available on the world market.
Main Technical Data:
- Monobloc bellhousings for standart gear pumps
- Electric Motor Power: 0,12 – 45 kW.
- Motor Frame Size: 63 – 132
- Pump Groups: 0 – 3 Gr.
Product Codes of Bellhousings:
| Code of Bellhousing | Motor Frame Size | Motor Power (kW) | Pump Group |
|---|---|---|---|
| LS140 | 63 | 0,12 – 0,18 | Gr. 1 |
| LS161 | 71 | 0,25 – 0,37 | Gr. 1 |
| LS201 | 80 / 90 | 0,55 – 1,5 | Gr. 1 |
| LS203 | 80 / 90 | 0,55 – 1,5 | Gr. 2 |
| LS250 | 100 / 112 | 2,4 – 4,0 | Gr. 2 |
| LS252 | 100 / 112 | 2,4 – 4,0 | Gr. 2 |
| LS253 | 100 / 112 | 2,4 – 4,0 | Gr. 2 |
| LS255 | 100 / 112 | 2,4 – 4,0 | Gr. 3 |
| LS300 | 132 | 5,5 – 9,0 | Gr. 3 |
| LS302 | 132 | 5,5 – 9,0 | Gr. 3 |
| LS350 | 160 | 11 – 22 | Gr. 3 |
| LS352 | 160 / 180 | 11 – 22 | Gr. 3 |
| LSE400 | 200 | 30 | Gr. 3 |
| LS456 | 225 | 37 - 45 | Gr. 3 |
